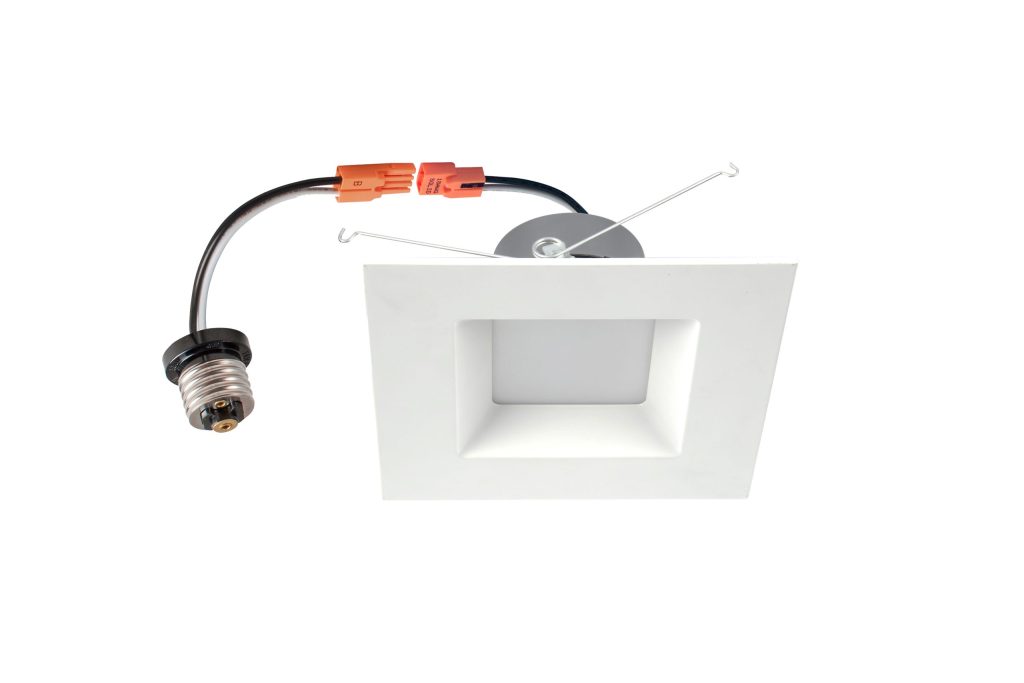

10188 Downlight 4″ Square Downlight, CCT 2700KN/A/3000KN/A/4000KN/A/5000K 10W
Additional information
| SIZE | 5” L x 2.9” D |
|---|---|
| WATTS | 10W |
| CCT | 2700K, 3000K, 4000K, 5000K |
| VOLTAGE | 120V |
| DIMMABLE | Yes |
| IP RATING | IP43 |
| BEAM ANGLE | 101.9° |
| CRI | 90 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | Aluminum, PC |
| LIFESPAN | 5 |
| DESCRIPTION | LED Downlights are safe to use in damp locations that rarely have direct water contact, such as bathrooms and awnings. These Lights can be easily converted and installed from below the ceiling without removing old fixtures. LED Downlights are perfect for homes, hotels, and offices. This light has a switch on the back to change between four color temperatures. |
SPECIFICATIONS

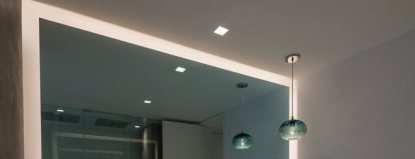

SQDL – LED CCT Square Retrofit Downlight Specifications
IES FILES
SQDL4 – Square Downlight CCT – 10W – IES
SQDL6 – Square Downlight CCT – 15W – IES
PHOTOMETRICS
SQDL4 – Square Downlight CCT – 10W – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 10188 | SES-SQDL4-CCT-10 | 4″ Square Downlight, 10W, CCT switchable |
| 10189 | SES-SQDL6-CCT-15 | 6″ Square Downlight, 15W, CCT switchable |
4″ Square Downlight, CCT switchable, 101.9 deg Beam Angle, 120V, 760lm, 90CRI, 0.9PF, Aluminum & PC, ETL & Energy Star
