Additional information
| SIZE | 5.1” (L) x 5.1” (W) x 5.1” (D) |
|---|---|
| WATTS | 10W/15W/20W |
| CCT | 3000K |
| VOLTAGE | 100-277V |
| DIMMABLE | Yes |
| IP RATING | IP43 |
| BEAM ANGLE | 60° |
| CRI | ≥80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | Aluminum, PC |
| LIFESPAN | 50,000 hours |

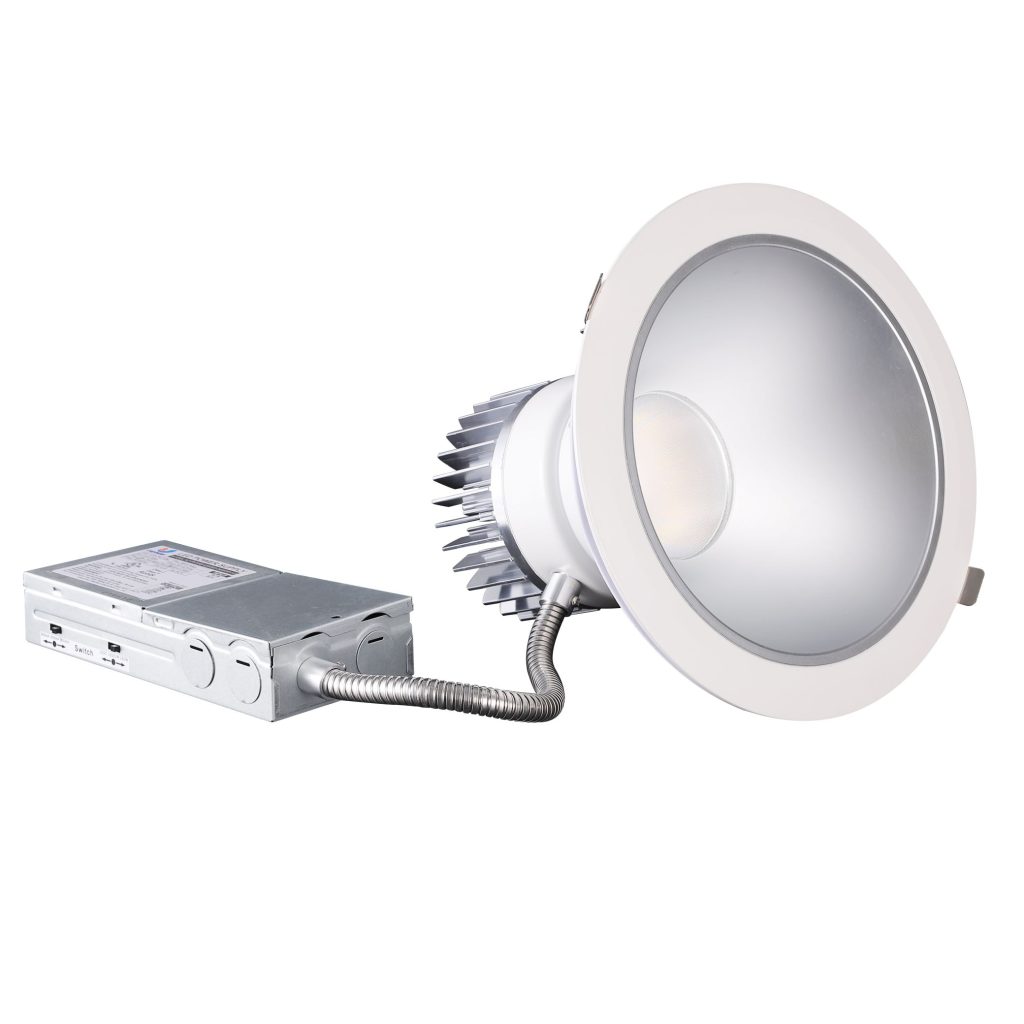

| DESCRIPTION | Extremely easy to install, this powerful recessed downlight is equipped with a quick-connect case and conduit to integrate with an existing fixture frame junction box. Set your color temperature between warm, daylight, and cool options. Not only is this light dimmable to 5%, but you can switch between three wattage settings to control your energy consumption. Get comfortable diffused light with no hot spots or dark areas. |
SPECIFICATIONS
CDL4 – Commercial Downlight – 4in – 3000K – Specifications
INSTRUCTIONS
CDL4 – Commercial Downlight – 4in – 3000K – Installation
IES FILES
CDL – Commercial Downlight – 4in – 3000K – IES
PHOTOMETRICS
CDL – Commercial Downlight – 4in – 3000K – Photometric
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11295 | SES-CDL4-3000-WWW | 3000K, Wattage Adjustable, 4in Commercial Downlight |
3000K, Wattage Adjustable Commercial Downlight
