Description
6″ Square Downlight, CCT switchable, 106.2 deg Beam Angle, 120V, 1200lm, 90CRI, 0.9PF, Aluminum & PC, ETL & Energy Star
Additional information

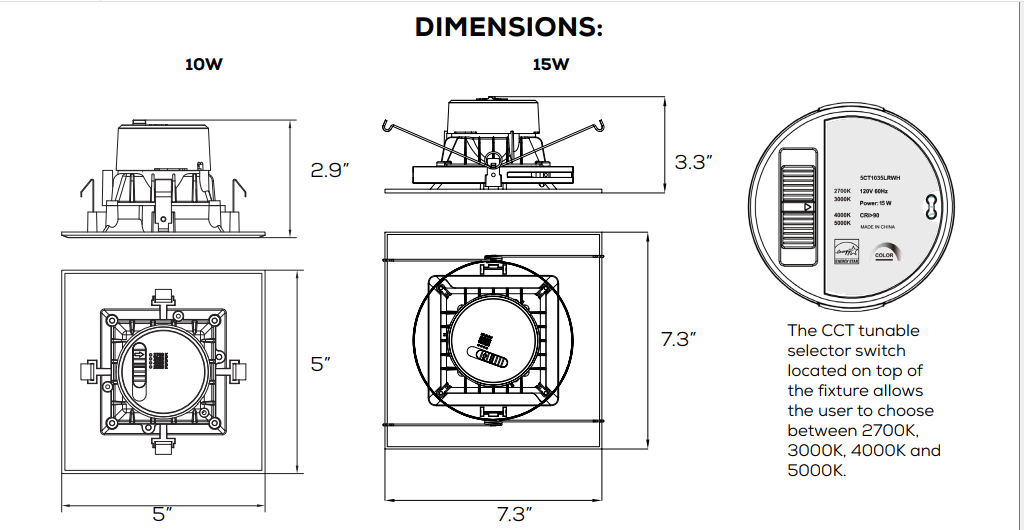

| SIZE | 7.3” L x 3.3” D |
|---|---|
| WATTS | 15W |
| CCT | 2700K, 3000K, 4000K, 5000K |
| VOLTAGE | 120V |
| DIMMABLE | Yes |
| IP RATING | IP43 |
| BEAM ANGLE | 106.2° |
| CRI | 90 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | Aluminum, PC |
| LIFESPAN | 5 |
| DESCRIPTION |
Additional information
| SIZE | 7.3” L x 3.3” D |
|---|---|
| WATTS | 15W |
| CCT | 2700K, 3000K, 4000K, 5000K |
| VOLTAGE | 120V |
| DIMMABLE | Yes |
| IP RATING | IP43 |
| BEAM ANGLE | 106.2° |
| CRI | 90 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | Aluminum, PC |
| LIFESPAN | 5 |
| DESCRIPTION |
SPECIFICATIONS
SQDL – LED CCT Square Retrofit Downlight Specifications
IES FILES
SQDL6 – Square Downlight CCT – 15W – IES
PHOTOMETRICS
SQDL4 – Square Downlight CCT – 10W – Photometrics
SQDL6 – Square Downlight CCT – 15W – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 10188 | SES-SQDL4-CCT-10 | 4″ Square Downlight, 10W, CCT switchable |
| 10189 | SES-SQDL6-CCT-15 | 6″ Square Downlight, 15W, CCT switchable |
