Description

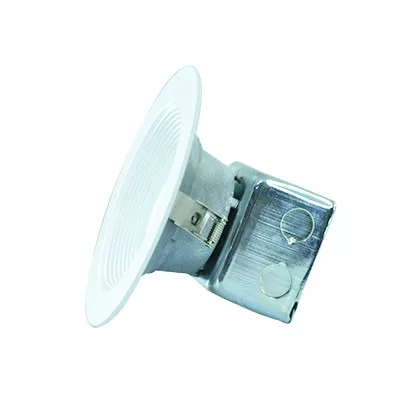

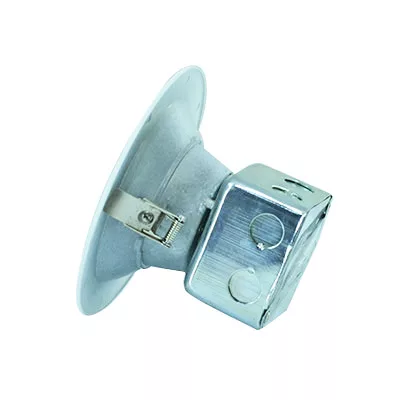

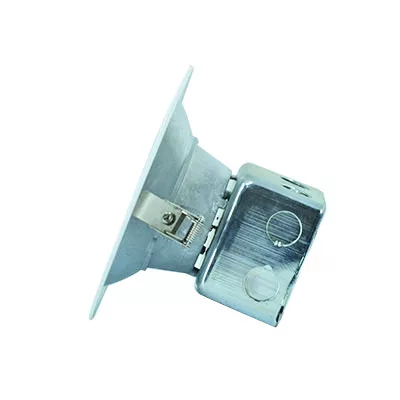

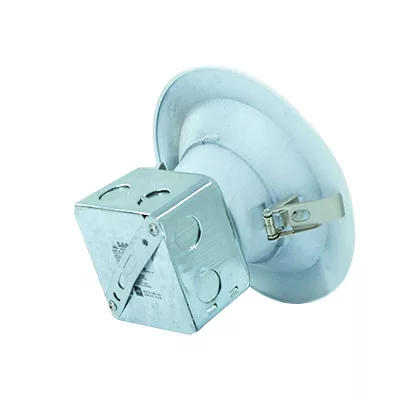

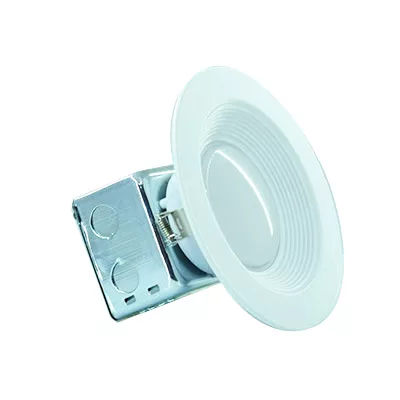

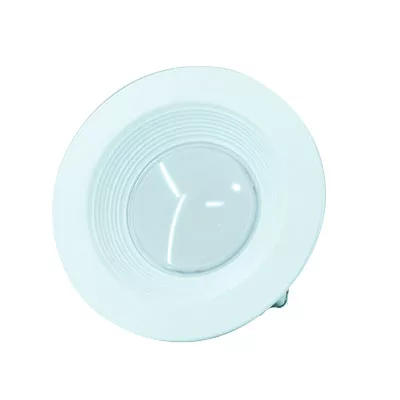

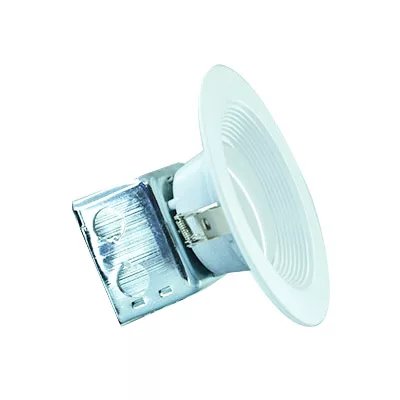

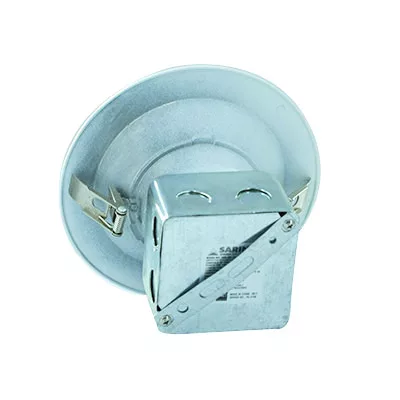

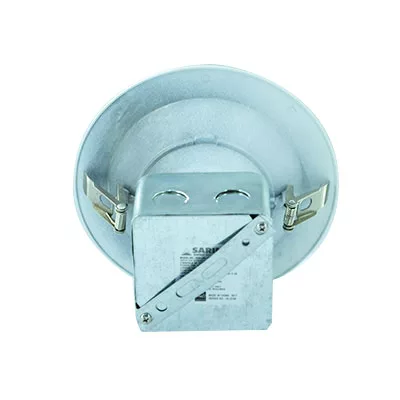

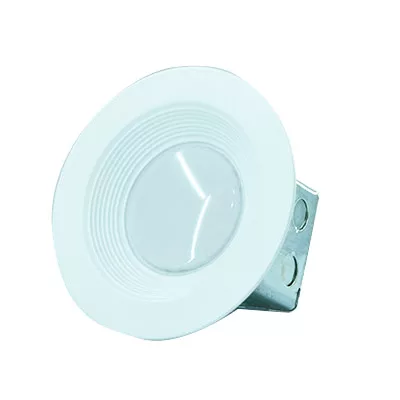

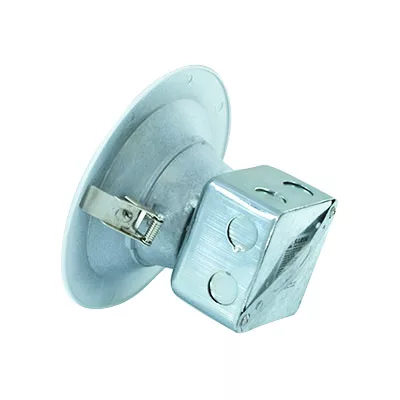

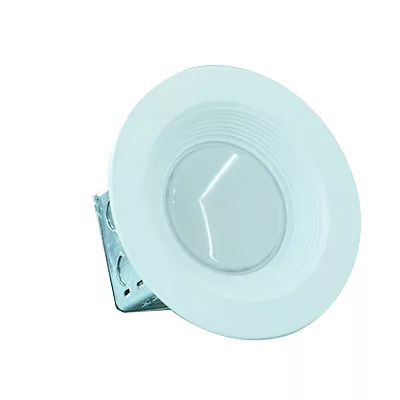

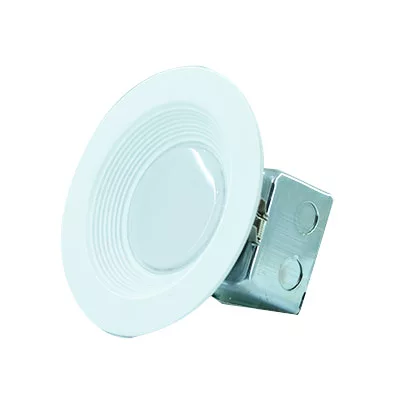

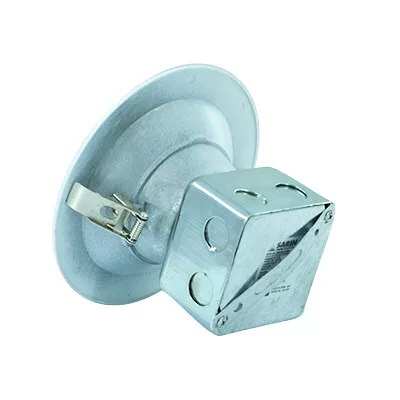

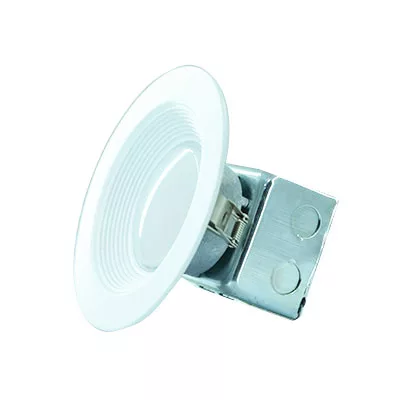

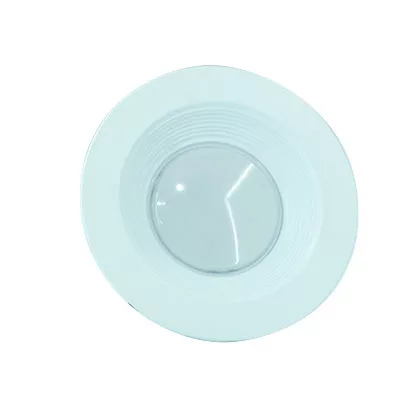

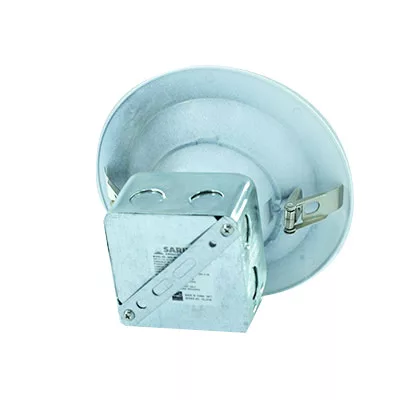

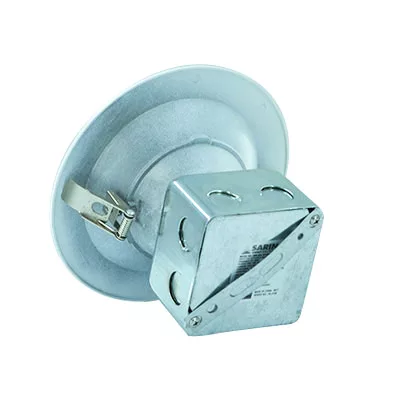

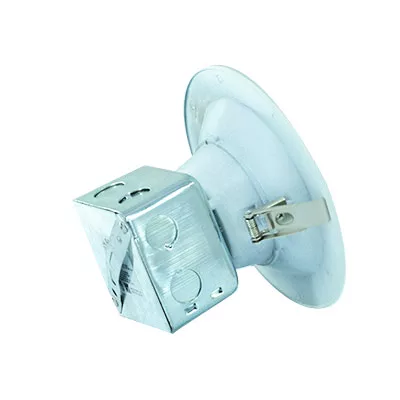

CEILING LED FIXTURE 15 Watt – 75W Equivalent – 1000 Lumens – 6″ Recessed Can with Junction Box
Additional information
| SIZE | 7.32×7.32×4.7 |
|---|---|
| WATTS | 15W |
| CCT | 5000K |
| VOLTAGE | 110-277V |
| DIMMABLE | Yes |
| IP RATING | IP43 |
| BEAM ANGLE | 93.9° |
| CRI | 90 |
| PF | >0.9 |
| FINISH | White, Frosted |
| MATERIALS | Aluminum, Acrylic |
| LIFESPAN | 5 |
| DESCRIPTION | LED Downlights with Junction Boxes are safe for outdoor use and protected from rain, snow, and weak jets of water, such as sprinklers. Installation requires access above the ceiling to protect the junction box. LED Downlights are perfect for homes, hotels, and offices. |
Additional information
| SIZE | 7.32×7.32×4.7 |
|---|---|
| WATTS | 15W |
| CCT | 5000K |
| VOLTAGE | 110-277V |
| DIMMABLE | Yes |
| IP RATING | IP43 |
| BEAM ANGLE | 93.9° |
| CRI | 90 |
| PF | >0.9 |
| FINISH | White, Frosted |
| MATERIALS | Aluminum, Acrylic |
| LIFESPAN | 5 |
| DESCRIPTION | LED Downlights with Junction Boxes are safe for outdoor use and protected from rain, snow, and weak jets of water, such as sprinklers. Installation requires access above the ceiling to protect the junction box. LED Downlights are perfect for homes, hotels, and offices. |
SPECIFICATIONS
LED Down Light with Junction Box, JDL – Specifications
INSTRUCTIONS
LED Down Light with Junction Box, JDL – Installation
IES FILES
LED Down Light with Junction Box, JDL- IES
PHOTOMETRICS
LED Down Light with Junction Box, JDL – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 10212 | SES-JDL-3000-15 | 6″ Recessed Ceiling LED Fixture – 3000K – 15W – with Junction Box |
| 10213 | SES-JDL-5000-15 | 6″ Recessed Ceiling LED Fixture – 5000K – 15W – with Junction Box |
