10649 SES-CP02B-180WSATA1-WH50

Additional information

SIZE

22.05*22.05*6.30

WATTS

180W

CCT

5700K Blue

VOLTAGE

120-277V

DIMMABLE

Yes

IP RATING

IP65

BEAM ANGLE

110°

CRI

>80

PF

0.9

FINISH

White

MATERIALS

Die-cast aluminum

LIFESPAN

7

DESCRIPTION

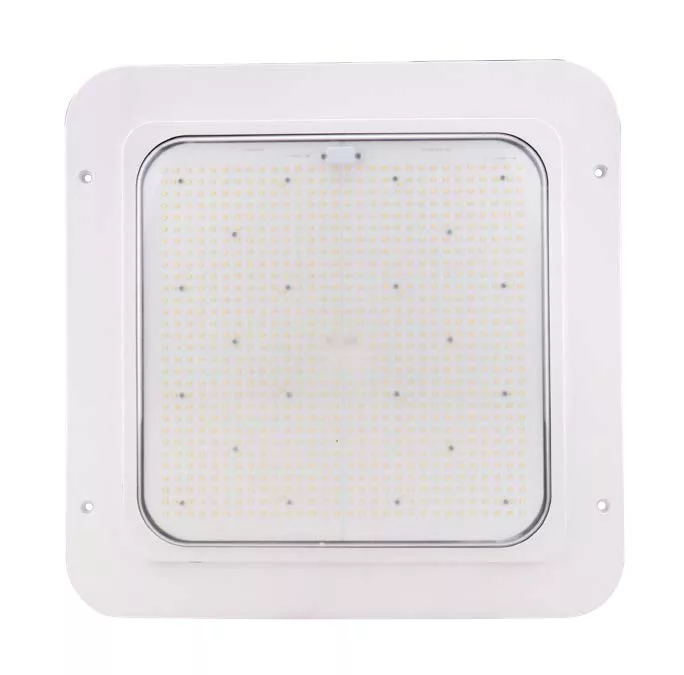

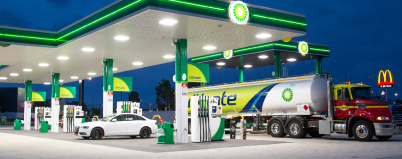

SARIN LED Ultra Slim Canopy Lights feature a wide 110 degree beam angle with flexible 120-277 voltage range. It comes with a frosted lens, includes state-of-the-art Sosen drivers, and is UL and DLC certified for nationally recognized safety and energy efficiency. Canopy Lights are designed to easily mount directly onto flat ceilings for outdoor applications and are rated IP65 which means they are protected from rain, snow, and weak jets of water, such as sprinklers and rain. They are commonly found at gas stations, awnings, entryways, car ports, service stations, underground parking lots, warehouses, garages, work floors, factories and so on.

Description

White Canopy Light.

Additional information

SIZE

22.05*22.05*6.30

WATTS

180W

CCT

5700K Blue

VOLTAGE

120-277V

DIMMABLE

Yes

IP RATING

IP65

BEAM ANGLE

110°

CRI

>80

PF

0.9

FINISH

White

MATERIALS

Die-cast aluminum

LIFESPAN

7

DESCRIPTION

SARIN LED Ultra Slim Canopy Lights feature a wide 110 degree beam angle with flexible 120-277 voltage range. It comes with a frosted lens, includes state-of-the-art Sosen drivers, and is UL and DLC certified for nationally recognized safety and energy efficiency. Canopy Lights are designed to easily mount directly onto flat ceilings for outdoor applications and are rated IP65 which means they are protected from rain, snow, and weak jets of water, such as sprinklers and rain. They are commonly found at gas stations, awnings, entryways, car ports, service stations, underground parking lots, warehouses, garages, work floors, factories and so on.

SPECIFICATIONS

CP02B – LED Canopy Light- Specifications



INSTRUCTIONS

CP02B – Canopy Light – Installation



IES FILES

CP02B – Canopy Light – 180W – 120V – IES

CP02B – Canopy Light – 240W – 120V – IES



PHOTOMETRICS

CP02B – Canopy Light – 180W – 120V – Photometrics

CP02B – Canopy Light – 240W – 120V – Photometrics



COMMON STOCK MODELS

ITEM CODE MODEL NUMBER PRODUCT DETAILS
10649 SES-CP02B-180WSATA1-WH50 Canopy Light, CP02B, 5700K, 180W, 23,580-25,000lm
10946 SES-CP02B-240-5700 Canopy Light, CP02B, 5700K, 240W, 31,680-34,080lm
