Description

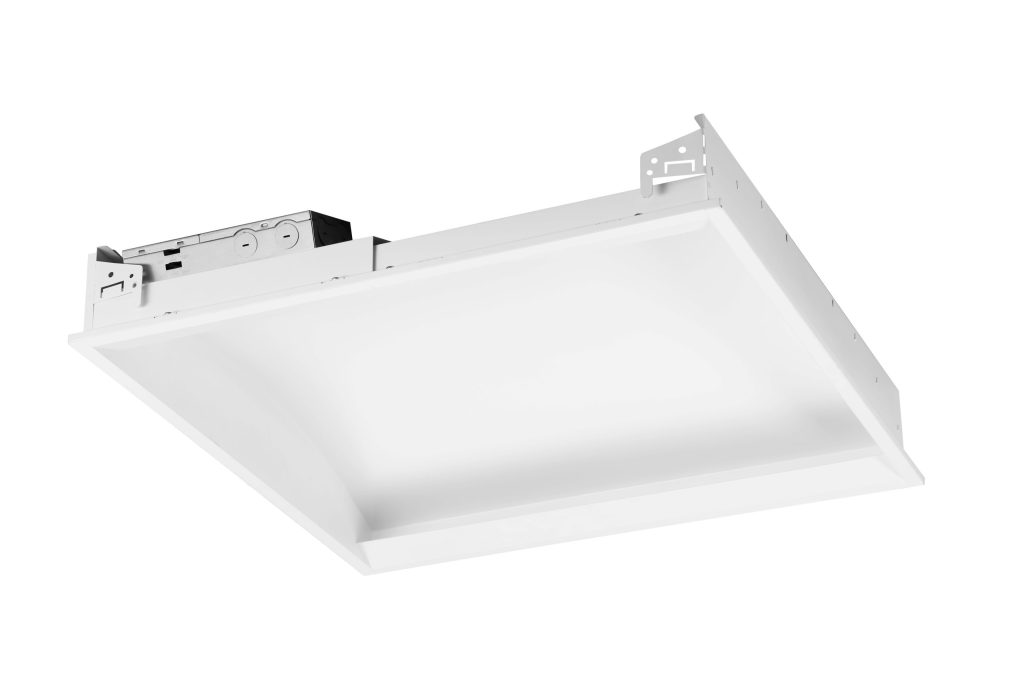

2×2 Troffer, No Center Basket
10873 Troffers 2×2 Troffer, No Center Basket 3500K/4000K/5000K 26W / 32W / 40W
Additional information
| SIZE | 23.74" L x 23.74" W x 4.5" D |
|---|---|
| WATTS | 26W/32W/40W |
| CCT | 3000K, 4000K, 5000K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP42 |
| BEAM ANGLE | 150° |
| CRI | 80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | steel |
| LIFESPAN | 5 |
| DESCRIPTION | A unique and decorative design, LED Indirect Troffers are an excellent replacement for fluorescent lighting. These Troffers are intended only for indoor use. LED Indirect Troffers are ideal for locations that would benefit from soft lighting, such as waiting rooms, places of worship, classrooms, and offices. This fixture allows you to set the wattage and color temperature. |
Additional information
| SIZE | 23.74" L x 23.74" W x 4.5" D |
|---|---|
| WATTS | 26W/32W/40W |
| CCT | 3000K, 4000K, 5000K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP42 |
| BEAM ANGLE | 150° |
| CRI | 80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | steel |
| LIFESPAN | 5 |
| DESCRIPTION | A unique and decorative design, LED Indirect Troffers are an excellent replacement for fluorescent lighting. These Troffers are intended only for indoor use. LED Indirect Troffers are ideal for locations that would benefit from soft lighting, such as waiting rooms, places of worship, classrooms, and offices. This fixture allows you to set the wattage and color temperature. |
SPECIFICATIONS
LED CCT Fusion Troffer Specifications – TR10
INSTRUCTIONS
TRO22 – CCT Fusion Troffer 2×2 – Installation
IES FILES
TR10 – 2×2 Fusion Troffer – 40W – IES
PHOTOMETRICS
TR10 – 2×2 Fusion Troffer – 40W – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 10873 | SES-TRO22-CCT-40-NCB | 2×2 Troffer, No Center Basket |

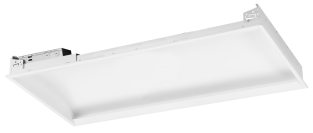

| 10874 | SES-TRO24-CCT-50-NCB | 2×4 Troffer, No Center Basket |
