Description

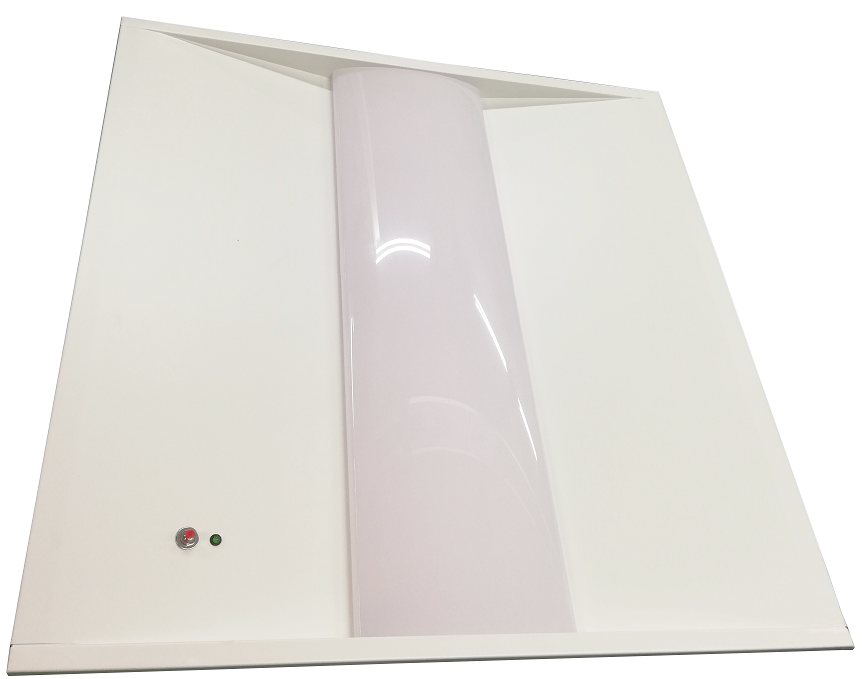

Troffers Troffer TR22 3500K, 4000K, 5000K 24W, 36W
[wc360]
Additional information
| SIZE | 2pcs |
|---|---|
| WATTS | 24W/36W |
| CCT | 3500K, 4000K, 5000K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| BEAM ANGLE | 120° |
| CRI | 80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | Cold rolled steel, PC |
| LIFESPAN | 5 |
| DESCRIPTION | SARIN LED CCT Troffers are a combination of functional and decorative lighting, and are an excellent replacement for fluorescent ceiling fixtures. These Troffers are intended only for indoor use. LED Indirect Troffers are ideal for locations that would benefit from soft lighting, such as waiting rooms, offices, places of worship, classrooms, and more. This fixture allows you to adjust the wattage and color temperature to your liking. |
Additional information
| SIZE | 2pcs |
|---|---|
| WATTS | 24W/36W |
| CCT | 3500K, 4000K, 5000K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| BEAM ANGLE | 120° |
| CRI | 80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | Cold rolled steel, PC |
| LIFESPAN | 5 |
| DESCRIPTION | SARIN LED CCT Troffers are a combination of functional and decorative lighting, and are an excellent replacement for fluorescent ceiling fixtures. These Troffers are intended only for indoor use. LED Indirect Troffers are ideal for locations that would benefit from soft lighting, such as waiting rooms, offices, places of worship, classrooms, and more. This fixture allows you to adjust the wattage and color temperature to your liking. |
| Size: | 23.7″ L x 23.7″ W x 1.8″ D |
|---|---|
| Watts: | 24W-36W |
| Lumens: | 2,600lm – 5,200lm |
| CCT Tunable: | 3000K-4000K-5000K |
| Voltage: | 120-277V |
| Dimmable: | 0-10V Dimming |
| IP Rating: | IP20 |
| Beam Angle: | 120° |
| CRI: | >80 |
| PF: | ≥ 0.9 |
| Materials: | Cold Rolled Steel, PC |
| Finish: | White, Frosted |
| Lifespan: | 50,000 hours |
| Description: | SARIN LED CCT Troffers are a combination of functional and decorative lighting, and are an excellent replacement for fluorescent ceiling fixtures. These Troffers are intended only for indoor use. LED Indirect Troffers are ideal for locations that would benefit from soft lighting, such as waiting rooms, offices, places of worship, classrooms, and more. This fixture allows you to adjust the wattage and color temperature to your liking. |
SPECIFICATIONS
LED Adjustable CCT Troffer TR22 TR24
INSTRUCTIONS
TR22 TR24 – Troffer- CCT and Wattage Tunable – Installation
IES FILES
TR22 – Troffer 2×2 – 30W – 120V – IES
PHOTOMETRICS
TR22 – Troffer 2×2 – 30W – 120V – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11264 | SES-TR24-35/40/50-36/42/50-T | Troffer, TR24 – 36W-40W-55W, CCT |
| 11267 | SES-TR22-35/40/50-24/36-T | Troffer, TR22 – 24W-36W, CCT |
| 11268 | SES-TR22-35/40/50-24/36-T(EM) | Emergency Troffer, TR22 – 24W-36W, CCT |
| 11269 | SES-TR24-35/40/50-36/42/50-T(EM) | Emergency Troffer, TR24 – 36W-40W-50W, CCT |
OPTIONAL ACCESSORIES
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 40978-A | 2×2 Troffer Surface Mount Kit | 1×4 Troffer Surface Mount Kit, Iron, White Finish |
| 40979-A | 2×4 Troffer Surface Mount Kit | 2×4 Troffer Surface Mount Kit, Iron, White Finish |
