Description

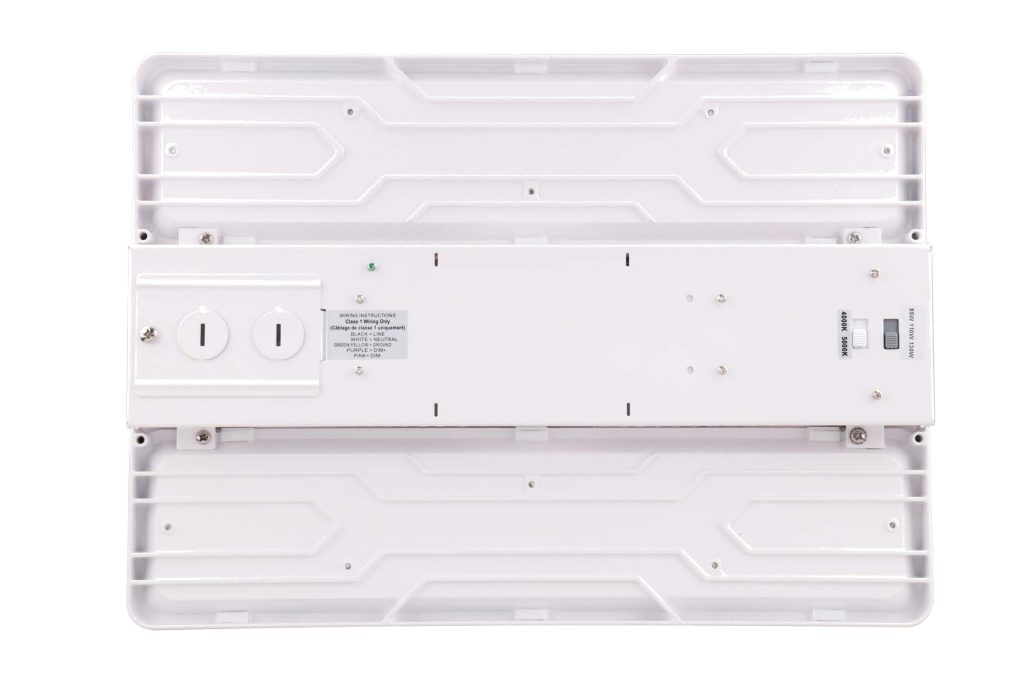

2FT LED Linear High Bay,CCT & Wattage selectable, with sensor in the middle design; compatible with 11115-A sensor
Additional information
| SIZE | 1 |
|---|---|
| WATTS | 600W |
| CCT | 5700K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| BEAM ANGLE | 90 ° |
| CRI | >80 |
| PF | ≥0.9 |
| FINISH | White |
| MATERIALS | Iron, Aluminum |
| LIFESPAN | 7 |
| DESCRIPTION | 3.8FT LED Linear High Bay PHB10A is 0-10V dimming, 5700K, DLC5.1 Premium, with sensor in the middle design, can easilly install when needed, accessaries easily to add, help saving your profits and having fun in expanding limitless lighting possibilities for your projects. |
Additional information
| SIZE | 1 |
|---|---|
| WATTS | 600W |
| CCT | 5700K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| BEAM ANGLE | 90 ° |
| CRI | >80 |
| PF | ≥0.9 |
| FINISH | White |
| MATERIALS | Iron, Aluminum |
| LIFESPAN | 7 |
| DESCRIPTION | 3.8FT LED Linear High Bay PHB10A is 0-10V dimming, 5700K, DLC5.1 Premium, with sensor in the middle design, can easilly install when needed, accessaries easily to add, help saving your profits and having fun in expanding limitless lighting possibilities for your projects. |
SPECIFICATIONS
Linear High Bay, PHB10 – Specifications
IES FILES
Linear High Bay, PHB10 – IES File
PHOTOMETRICS
Linear High Bay, PHB10 – Photometric
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11352 | SES-PHB10-5700-600W | Linear High Bay, PHB10 – 5700K, 600W |
OPTIONAL ACCESSORIES
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11115-A | HB01DMS | High Bay HB11 sensor |
| 11345-C | SES-HB11&HB18B-REMOTE | SES-HB11&HB18B-REMOTE |
| 11348-A | YH36A-16WL-300 | PHB08E Linear High Bay 16W Emergency Driver |
| 11350-A | SES-PHB10-LW-PENDANT | PHB10 Low Wattage Pendant Mount |
| 11350-B | SES-PHB10-LW-GUARD | PHB10 Low Wattage Guard |
| 11350-C | SES-PHB10-LW-SURFACE | PHB10 Low Wattage Surface Mount |
| 11350-D | SES-PHB10-CHAIN | PHB10 Chain |
| 11351-A | SES-PHB10-HW-PENDANT | PHB10 High Wattage Pendant Mount |
| 11351-B | SES-PHB10-HW-GUARD | PHB10 High Wattage Guard |
| 11351-C | SES-PHB10-SURFACE | PHB10 High Wattage Surface Mount |
