Description

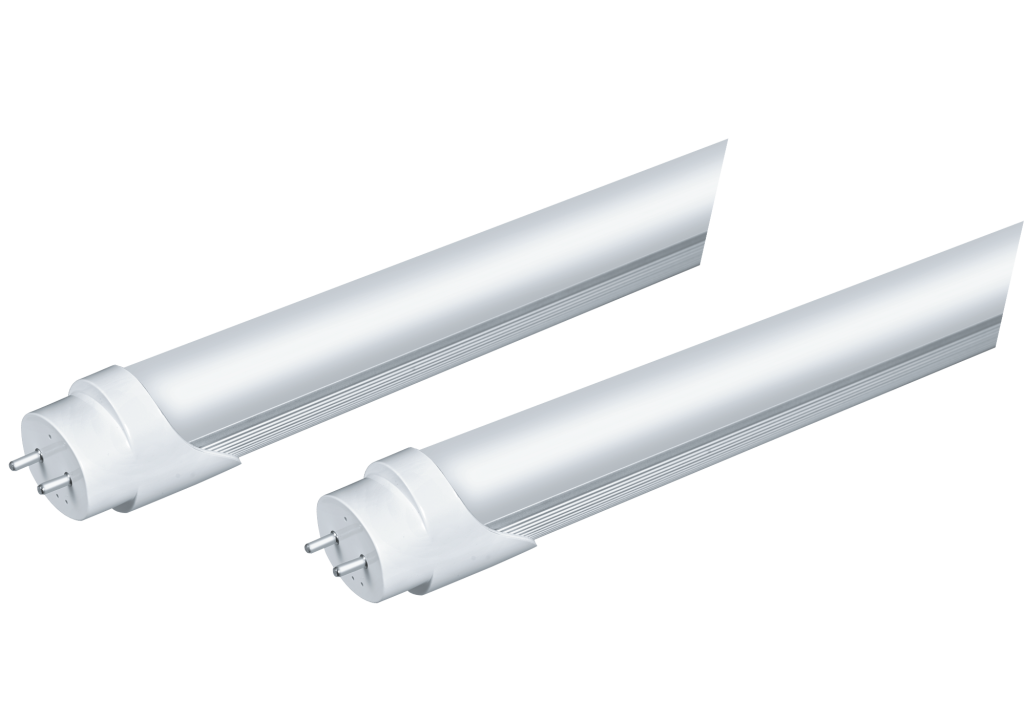

4FT, T8, Clear, Double-Ended, IP20
Additional information
| SIZE | 25 |
|---|---|
| WATTS | 22W |
| CCT | 3000-6500K |
| VOLTAGE | 90-277V |
| DIMMABLE | No |
| IP RATING | IP20 |
| BEAM ANGLE | 120° |
| CRI | 80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | PC |
| LIFESPAN | 5 |

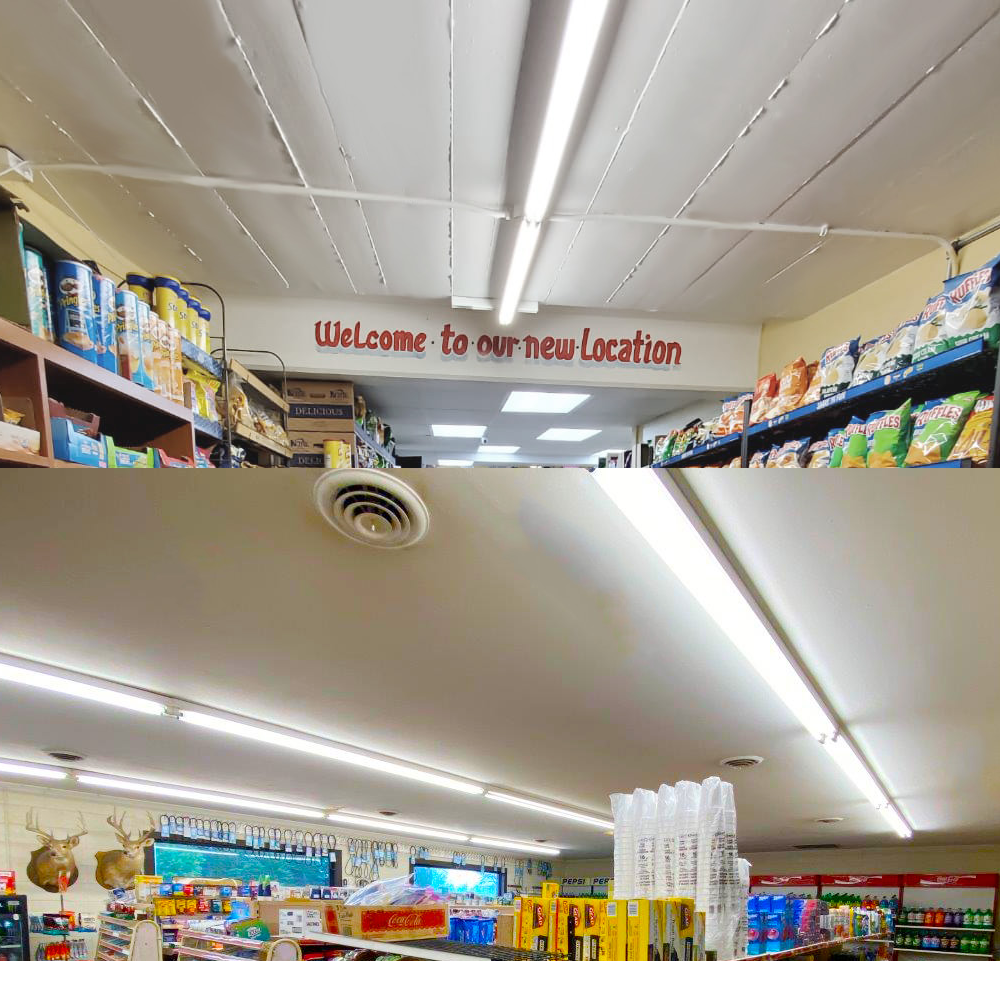

| DESCRIPTION | LED T8 Tube Lights are commonly used to replace T8 fluorescent light bulbs, and can provide an energy savings of up to 80%. These tubes are intended only for indoor use. LED T8 Tube Lights are perfect for stores, places of worship, schools, and hospitals. |
Additional information
| SIZE | 25 |
|---|---|
| WATTS | 22W |
| CCT | 3000-6500K |
| VOLTAGE | 90-277V |
| DIMMABLE | No |
| IP RATING | IP20 |
| BEAM ANGLE | 120° |
| CRI | 80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | PC |
| LIFESPAN | 5 |
| DESCRIPTION | LED T8 Tube Lights are commonly used to replace T8 fluorescent light bulbs, and can provide an energy savings of up to 80%. These tubes are intended only for indoor use. LED T8 Tube Lights are perfect for stores, places of worship, schools, and hospitals. |
SPECIFICATIONS
T8 – LED Tube Light – Specifications
INSTRUCTIONS
2T8 4T8 – Tube Light – Installation
IES FILES
T84FT – T8 4ft Tube – 18W – IES
T84FT – T8 4ft Tube – 22W – IES
PHOTOMETRICS
T84FT – T8 4ft Tube – 18W – Photometrics
T84FT – T8 4ft Tube – 22W – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 10100 | SES-2T8-6500-10 (Clear, SE) | T8 – 2FT -10W – Single-Ended – Clear |
| 10137 | SES-T84FT-3000-22 | T8 – 4FT – 22W – Double-Ended – Clear |
| 10021 | SES-T84FT-4000-22-DE-F | T8 – 4FT – 22W – Double-Ended – Frosted |
| 10138 | SES-T84FT-4000-22 | T8 – 4FT – 22W – Double-Ended – Clear |
| 10020 | SES-T84FT-5000-22-DE-F | T8 – 4FT – 22W – Double-Ended – Frosted |
| 10104 | SES-4T8-5000-18-DE (Clear, DE) | T8 – 4FT – 18W – Double-Ended – Clear |
| 10140 | SES-T84FT-5000-22 (Striped) | T8 – 4FT – 22W – Double-Ended – Striped |
| 11412 | SES-T84FT-5000-22 | T8 – 4FT – 22W – Double-Ended – Clear |
| 10141 | SES-T84FT-6500-18 (frosted cover) | T8 – 4FT – 18W – Double-Ended – Frosted |
