Description
[wc360]
Additional information
| SIZE | 4 |
|---|---|
| WATTS | 40/50/60W |
| CCT | 3000K, 4000K, 5000K |
| VOLTAGE | 100-277V |
| DIMMABLE | Yes |
| IP RATING | IP40 |
| BEAM ANGLE | 120° |
| CRI | 80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | Metal +PC |
| LIFESPAN | 7 |

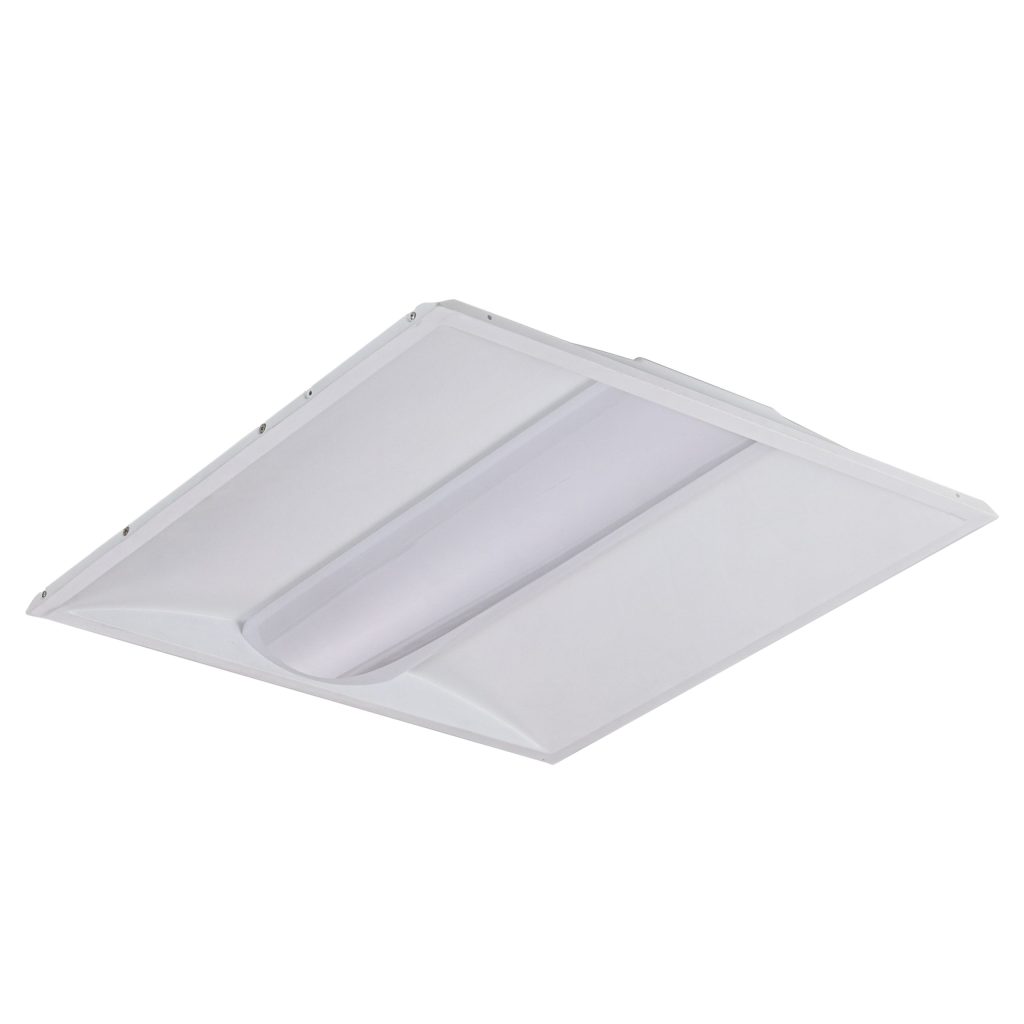

| DESCRIPTION | SARIN LED CCT Troffers are a combination of functional and decorative lighting, and are an excellent replacement for fluorescent ceiling fixtures. These Troffers are intended only for indoor use. LED Indirect Troffers are ideal for locations that would benefit from soft lighting, such as waiting rooms, offices, places of worship, classrooms, and more. This fixture allows you to adjust the wattage and color temperature to your liking. |
Additional information
| SIZE | 4 |
|---|---|
| WATTS | 40/50/60W |
| CCT | 3000K, 4000K, 5000K |
| VOLTAGE | 100-277V |
| DIMMABLE | Yes |
| IP RATING | IP40 |
| BEAM ANGLE | 120° |
| CRI | 80 |
| PF | 0.9 |
| FINISH | White |
| MATERIALS | Metal +PC |
| LIFESPAN | 7 |
| DESCRIPTION | SARIN LED CCT Troffers are a combination of functional and decorative lighting, and are an excellent replacement for fluorescent ceiling fixtures. These Troffers are intended only for indoor use. LED Indirect Troffers are ideal for locations that would benefit from soft lighting, such as waiting rooms, offices, places of worship, classrooms, and more. This fixture allows you to adjust the wattage and color temperature to your liking. |
SPECIFICATIONS
TF22 TF24 – CCT Troffer – Updated – Specifications
INSTRUCTIONS
TF22 TF24 – Troffer- CCT and Wattage Tunable – Installation
IES FILES
TF24 – 2×4 Troffer – Updated Q0124 – IES
PHOTOMETRICS
TF22 – 2×2 Troffer – Photometrics
TF24 – 2×4 Troffer – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11450 | SES-TF22-Q01-S40-3050 | Updated TF22; 3CCT; Wattage Selectable |
| 11451 | SES-TF24-Q01-S60-3050 | Updated TF24; 3CCT; Wattage Selectable |
OPTIONAL ACCESSORIES
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 40978-A | 2×2 Troffer Surface Mount Kit | 2×2 Troffer Surface Mount Kit, Iron, White Finish |
| 40979-A | 2×4 Troffer Surface Mount Kit | 2×4 Troffer Surface Mount Kit, Iron, White Finish |
