40745-D Strip & Flex Ultra Neon Flex AC Plug

Additional information

SIZE

Top Bend: 164’ x 0.8” x 0.6”
Side Bend: 164’ x 0.4” x 0.8”

WATTS

Top Bend: 164’ x 0.8” x 0.6”
Side Bend: 164’ x 0.4” x 0.8”

CCT

White/Red/Green/Blue/
Amber/Pink

VOLTAGE

AC110-120V

DIMMABLE

TRIAC

IP RATING

IP65

BEAM ANGLE

120°

CRI

White: Ra>80

PF

>0.9

LED Qty

Top Bend (TB): 42LED/ft.
Side Bend (SB): 40LED/ft

MATERIALS

Silicone, Copper

LIFESPAN

50,000 Hours

CUTTING LENGTH

900TB: 2in
901SB: 1ft

DESCRIPTION

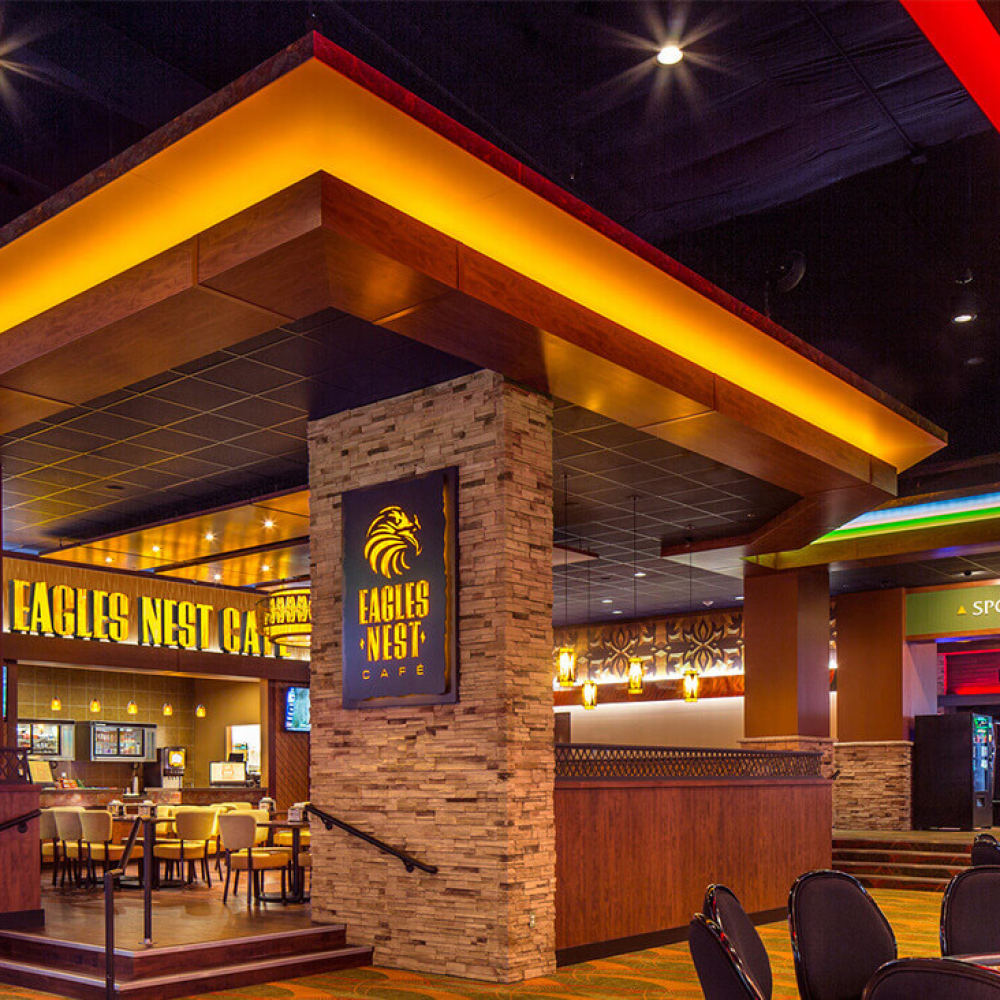

SARIN Ultra Neon Flex lights are commonly used in both outside and inside spaces like stairs, bridges, hotels, shopping centers, fences, and more. These Ultra Neon Flex lights have an IP65 rating and are safe for outdoor use and inclement weather

SPECIFICATIONS

LED Ultra Neon Flex Light – UNF – Specification Sheet



IES FILES

LED Ultra Neon Flex Light – Top Bend- UNF – IES

LED Ultra Neon Flex Light – Side Bend – UNF – IES



PHOTOMETRICS

LED Ultra Neon Flex Light – Top Bend – UNF – Photometrics

LED Ultra Neon Flex Light – Side Bend – UNF – Photometrics



COMMON STOCK MODELS

ITEM CODEMODEL NUMBERPRODUCT DETAILS
30745SES-UNF-900XDStrip & Flex Top Bend Neon Flex – 9W/M
30746SES-UNF-901XDStrip & Flex Side Bend Neon Flex – 9W/M
30747SES-UNF-900XD-BLUEStrip & Flex Top Bend Neon Flex Blue – 10W/M
30748SES-UNF-900XD-6000KStrip & Flex Top Bend Neon Flex 6000K – 14W/M
30749SES-UNF-900XD-AMBERStrip & Flex Top Bend Neon Flex Amber – 10W/M
30750SES-UNF-900XD-REDStrip & Flex Top Bend Neon Flex Red – 10W/M

OPTIONAL ACCESSORIES

ITEM CODEMODEL NUMBER
40745-DUNF Plug Wire
40745-MUNF End Cap
40745-NUNF Clip
40745-OUNF Channel
40745-PUNF Bracket
