Description

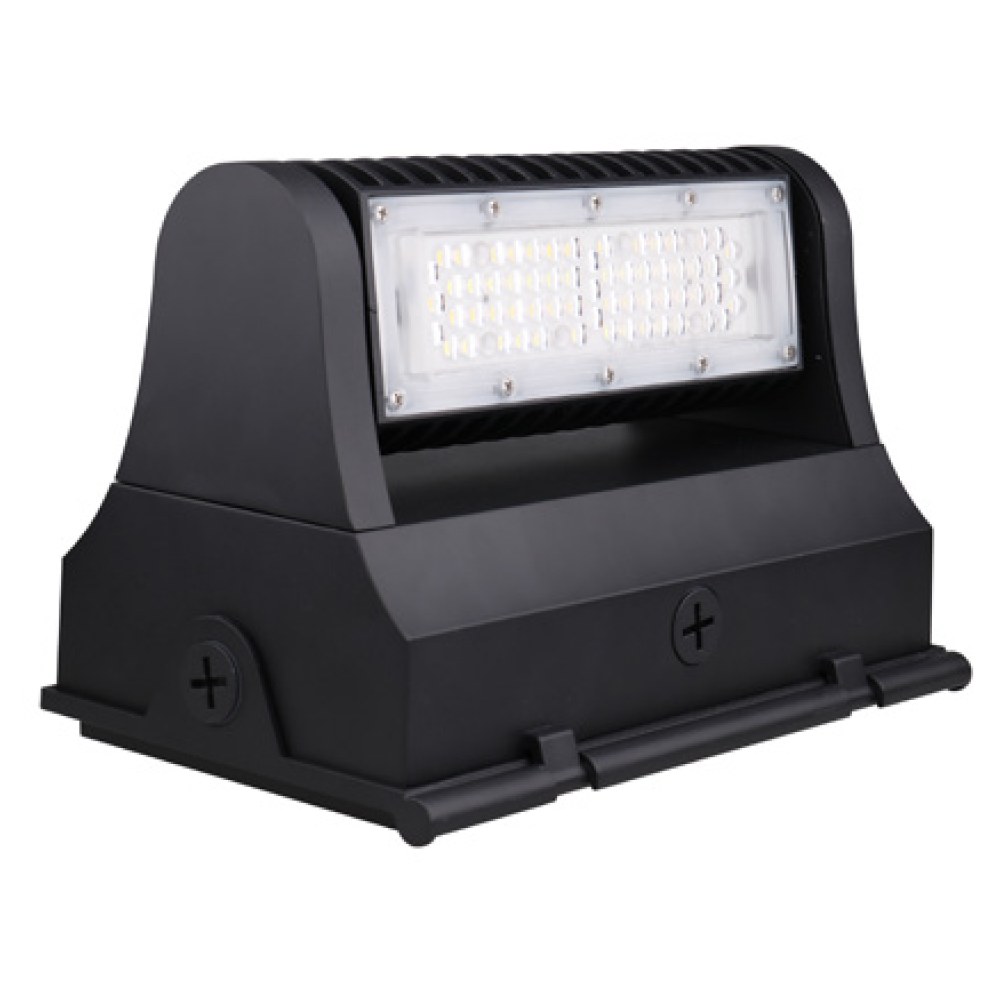

Wall Pack WPR0 5700K 25W
Additional information
| SIZE | 4 |
|---|---|
| WATTS | 25W |
| CCT | 5700K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| BEAM ANGLE | 60° |
| CRI | 70 |
| PF | 0.9 |
| FINISH | Bronze |
| MATERIALS | Aluminum Alloy |
| LIFESPAN | 7 |
| DESCRIPTION | LED Rotatable Wall Pack – WPR01 – 5700K, 25W, 3250-3375lm |
Additional information
| SIZE | 4 |
|---|---|
| WATTS | 25W |
| CCT | 5700K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| BEAM ANGLE | 60° |
| CRI | 70 |
| PF | 0.9 |
| FINISH | Bronze |
| MATERIALS | Aluminum Alloy |
| LIFESPAN | 7 |
| DESCRIPTION | LED Rotatable Wall Pack – WPR01 – 5700K, 25W, 3250-3375lm |
SPECIFICATIONS
Rotatable LED Wall Pack, WPR01 – Specifications
INSTRUCTIONS
Rotatable LED Wall Pack, WPR01 – Installation
IES FILES
Rotatable LED Wall Pack 25W, WPR01 – IES
IES FILES
Rotatable LED Wall Pack 25W, WPR01 – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11174 | SES-WPR01-5700-40 | LED Rotatable Wall Pack – WPR01 – 5700K, 40W, 5200-5600lm |
| 11175 | SES-WPR01-5700-80 | LED Rotatable Wall Pack – WPR01 – 5700K, 80W, 10400-11200lm |
| 11176 | SES-WPR01- 5700-25 | LED Rotatable Wall Pack – WPR01 – 5700K, 25W, 3250-3375lm |
