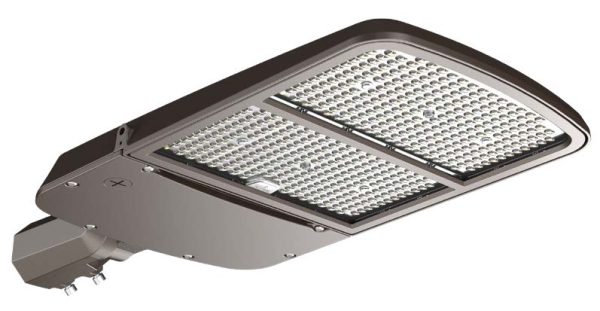

Shoebox Light, SB16 – 150W, 300W, 450W

Additional information

Size:

150W: 12.6" W x 17" H x 4.6" D
300W: 12.6" W x 21.2" H x 4.6" D
450W: 12.6" W x 27" H x 4.6' D

Watts:

150W, 300W, 450W

CCT:

150W and 300W Tunable: 3000K-4000K-5000K
300W AND 450W Single CCT: 5700K

Voltage:

120-277V
*(Single CCT 300W version available in 480V)

Dimmable:

0-10V

IP Rating:

IP65

Beam Angle:

155*90° Type III

CRI:

>80

PF:

≥ 0.9

Finish:

Bronze (available in white)

Materials:

Die-Cast Aluminum

Lifespan:

50,000 Hours

Description:

SARIN LED Shoebox Lights are commonly used to replace high-pressure sodium and metal halide lights to provide energy savings of up to 70%. These area lights are safe for outdoor use and are protected from rain, snow, and weak jets of water, such as sprinklers. Shoebox Lights are perfect for stadiums, parks, billboards, parking lots, and office buildings. An optional photocell sensor allows the light to automatically activate at night. This fixture turns on and off instantly without flickering or humming. The lens has a glare-reduction composition that softens the light and makes it more uniform and safe to the eye. This Dark Sky compliant light eliminates glare and prevents light pollution.

Reviews

There are no reviews yet.

Be the first to review “Shoebox Light, SB16 – 150W, 300W, 450W”

Your email address will not be published. Required fields are marked *

SPECIFICATIONS

Shoebox Light, SB16 – Specifications



INSTRUCTIONS

Shoebox Light, SB16 – Instructions



IES FILES

Shoebox Light, SB16 150W – IES File

Shoebox Light, SB16 300W – IES File



PHOTOMETRICS

Shoebox Light, SB16 150W – Photometric

Shoebox Light, SB16 300W – Photometric



COMMON STOCK MODELS

ITEM CODE MODEL NUMBER PRODUCT DETAILS
11324 SES-SB16-CCT-150W Area Light SB16 Shoebox – CCT Tunable, 150W
11325 SES-SB16-CCT-300W Area Light SB16 Shoebox – CCT Tunable, 300W
11326 SES-SB16-5700-300W Area Light SB16 Shoebox – 5700K, 300W
11327 SES-SB16-5700-300W-480V Area Light High Voltage SB16 Shoebox – 5700K 300W
11369 SES-SB16-5700-450 Area Light SB16 Shoebox – 5700K, 450W
11353 SES-SB16-5700-300W-WH Area Light SB16 Shoebox – 5700K, 300W (White)

OPTIONAL ACCESSORIES

ITEM CODE MODEL NUMBER PRODUCT DETAILS
10899 JL-205C-PHOTOCELL Area Light Shoebox Photocell
11325-A SES-SB16&SB14-SLIP-FITTER-BRONZE Area Light SB16 Slip Fitter Bronze
11325-B SES-SB16&SB14-EXTRUDED-BRONZE Area Light SB16 Extruded Arm Bronze
11325-C SES-SB16&SB14-SLIP-FITTER-WHITE Area Light SB16 Slip Fitter White
11325-D SES-SB16&SB14-EXTRUDED-WHITE Area Light SB16 Extruded Arm White
11325-E SES-SB16-150W-LARGE-YOKE-BRONZE Area Light SB16 150W Large Yoke Bronze
11325-F SES-SB16-300W-LARGE-YOKE-BRONZE Area Light SB16 Large 300W Yoke Bronze
11325-G R1-320B-260 Area Light SB16 120-277V 300W Driver
11325-H R1-V320B-260 Area Light SB16 277-480V 300W Driver
11325-I SES-SB16-TYPE4-150W-LENS Area Light SB16 Type 4 Lens 150W
11325-J SES-SB16-TYPE5-150W-LENS Area Light SB16 Type 5 Lens 150W
11325-K SES-SB16-TYPE4-300W-LENS Area Light SB16 Type 4 Lens 300W
11325-L SES-SB16-TYPE5-300W-LENS Area Light SB16 Type 5 Lens 300W
