Description

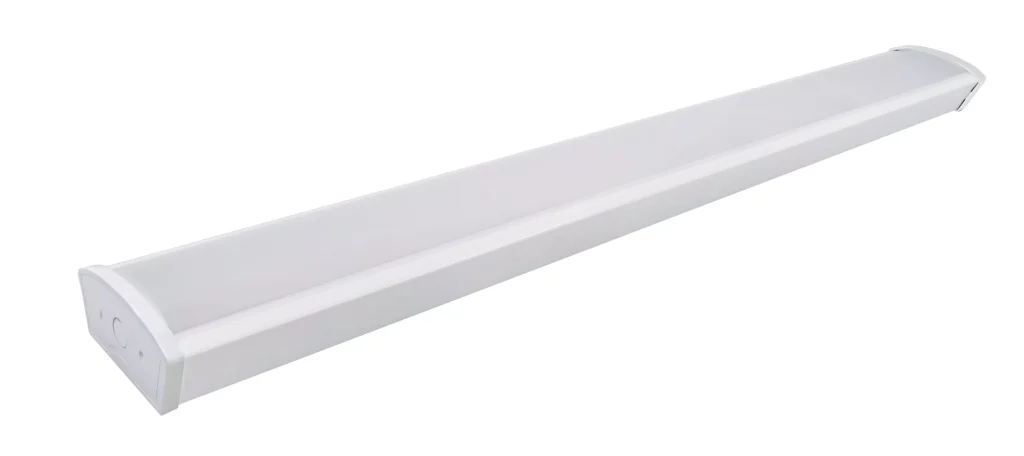

LED wraparound fixture, white steel base with PC endcap, end cap with knock out, frosted PC diffuser, 40W, CRI80, 3000K/4000K/5000K switchable,120-277V Non-dimmable.
Additional information
| SIZE | 5.94"x2.95"x48.35" |
|---|---|
| WATTS | 40W |
| CCT | 3000K, 4000K, 5000K |
| VOLTAGE | 120-277V |
| DIMMABLE | Non |
| IP RATING | IP20 |
| BEAM ANGLE | N/A |
| CRI | 80 |
| PF | ＞0.95 |
| FINISH | White |
| MATERIALS | Steel, PC |
| LIFESPAN | 5 |
| DESCRIPTION | SARIN LED WRAPAROUND FIXTURES are designed to replace outdated fluorescent lighting with top-grade LEDs that last for about 50, 000 hours. These fixtures are recommended for commercial spaces, office areas, retail locations, classrooms and more. The base has a sleek white finish and is made out of high-quality steel. The end-caps are polycarbonate (PC) with knockouts that allow you to link other fixtures together or to extend the power lines with ease. The diffuser is frosted white and is also made out of PC. This product is available in dimmable, non-dimmable, and emergency backup options. |
Additional information
| SIZE | 5.94"x2.95"x48.35" |
|---|---|
| WATTS | 40W |
| CCT | 3000K, 4000K, 5000K |
| VOLTAGE | 120-277V |
| DIMMABLE | Non |
| IP RATING | IP20 |
| BEAM ANGLE | N/A |
| CRI | 80 |
| PF | ＞0.95 |
| FINISH | White |
| MATERIALS | Steel, PC |
| LIFESPAN | 5 |
| DESCRIPTION | SARIN LED WRAPAROUND FIXTURES are designed to replace outdated fluorescent lighting with top-grade LEDs that last for about 50, 000 hours. These fixtures are recommended for commercial spaces, office areas, retail locations, classrooms and more. The base has a sleek white finish and is made out of high-quality steel. The end-caps are polycarbonate (PC) with knockouts that allow you to link other fixtures together or to extend the power lines with ease. The diffuser is frosted white and is also made out of PC. This product is available in dimmable, non-dimmable, and emergency backup options. |
SPECIFICATIONS
WR03 – Wraparound Fixture – Specifications
INSTRUCTIONS
WR03 – Wraparound – 40W – Non-Dimmable – Installation
WR03 – Wraparound – 40W – Dimmable – Installation
WR03 – Wraparound – 40W – Emergency Backup – Installation
IES FILES
WR03 – CCT Linear Wraparound – 40W – IES
PHOTOMETRICS
WR03 – Wraparound – 40W – Dimmable – Installation
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 10828 | SES-WR03-CCT-40 | Linear WR03 CCT 40W |
| 10829 | SES-WR03-CCT-40-D | Linear WR03 CCT 40W, Dimmable |
| 11143 | SES-WR03-CCT-40-EM | Linear WR03 CCT 40W, Emergency Driver |
