Description

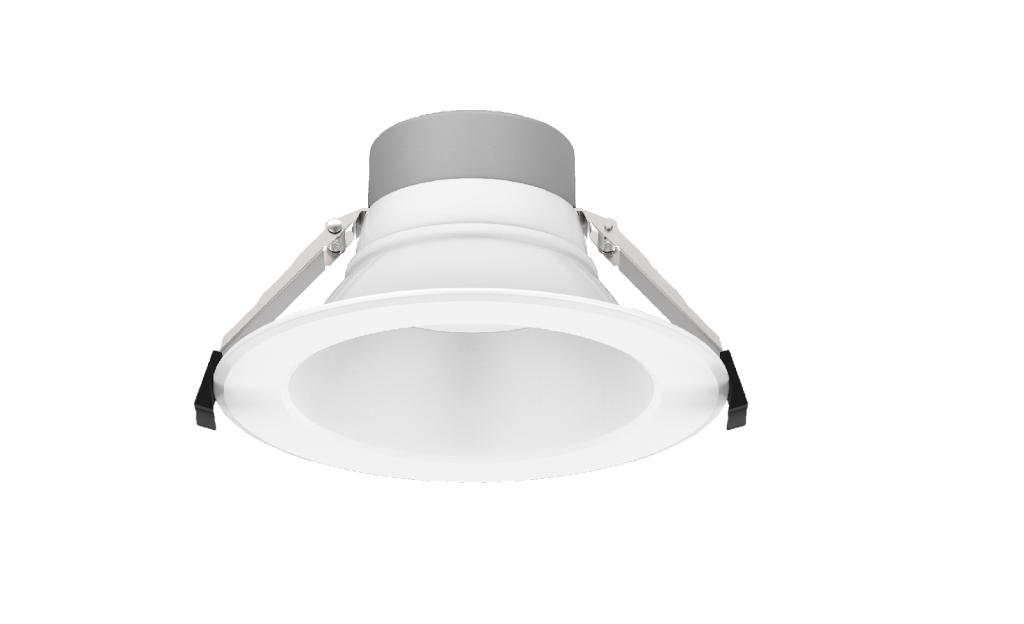

Recessed Commercial 6″ Downlight; CCT and Wattage Tunable; spring installtion without housing
Additional information
| SIZE | 6 |
|---|---|
| WATTS | 20/25/30/35/40W Selectable |
| CCT | 5-CCT 2700K+3000K+3500K+4000K+5000K |
| VOLTAGE | 0-10V@120-277V Triac/ELV@120V |
| DIMMABLE | Yes |
| IP RATING | IP54 |
| BEAM ANGLE | 90° |
| CRI | 80 |
| PF | ≥0.9 |
| FINISH | White |
| MATERIALS | Aluminum, PC |
| LIFESPAN | 5 |
| DESCRIPTION | LED Downlights with Junction Boxes are safe for outdoor use and protected from rain, snow, and weak jets of water, such as sprinklers. Installation requires access above the ceiling to protect the junction box. LED Downlights are perfect for homes, hotels, and offices. |
Additional information
| SIZE | 6 |
|---|---|
| WATTS | 20/25/30/35/40W Selectable |
| CCT | 5-CCT 2700K+3000K+3500K+4000K+5000K |
| VOLTAGE | 0-10V@120-277V Triac/ELV@120V |
| DIMMABLE | Yes |
| IP RATING | IP54 |
| BEAM ANGLE | 90° |
| CRI | 80 |
| PF | ≥0.9 |
| FINISH | White |
| MATERIALS | Aluminum, PC |
| LIFESPAN | 5 |
| DESCRIPTION | LED Downlights with Junction Boxes are safe for outdoor use and protected from rain, snow, and weak jets of water, such as sprinklers. Installation requires access above the ceiling to protect the junction box. LED Downlights are perfect for homes, hotels, and offices. |
SPECIFICATIONS
CCT & Wattage Tunable Downlight – DL254 – Specifications
Installation
Commercial Downlight – DL254 – Installation
IES FILES
Commercial Downlight – DL254 – IES File
Photometrics
Commercial Downlight – DL254 – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11142 | SES-DL254-CCT-WWW | Commercial Downlight, DL254 – 20W+26W+33W |
