Description

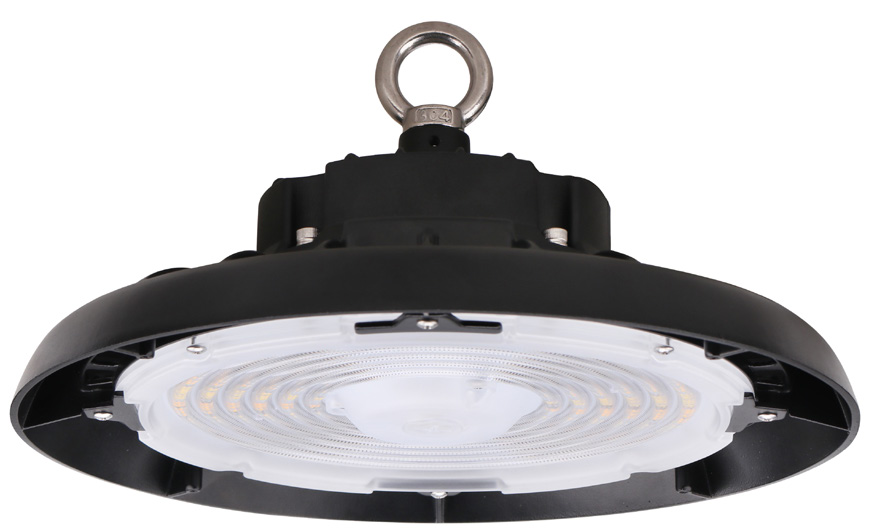

LED Round High Bay, 0-10V dimming, CCT & Wattage selectable, screw-in sensor in the middle design (pre-install sensor base); compatible with 11115-A sensor
[wc360]
Additional information
| SIZE | 1 |
|---|---|
| WATTS | 240W/200W/180W |
| CCT | 3500K, 4000K, 5000K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| BEAM ANGLE | 90° |
| CRI | >80 |
| PF | ≥0.9 |
| FINISH | Black |
| MATERIALS | Die-cast Aluminum |
| LIFESPAN | 7 |
| DESCRIPTION | SARIN LED UFO High Bay lights are commonly used in the lighting of workshops, factories, warehouses, large retail spaces, gas stations, and gymnasiums. These fixtures are suitable for a variety of applications, and will provide significant energy savings. Round high bay LED lights provide a circular light beam angle of 90°. This High Bay provides uniform light distribution and features a diecast aluminum construction, making the lights extremely durable. This LED Round High Bay is 0 10V dimming and features a motion sensor base allowing for further customization. |
Additional information
| SIZE | 1 |
|---|---|
| WATTS | 240W/200W/180W |
| CCT | 3500K, 4000K, 5000K |
| VOLTAGE | 120-277V |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| BEAM ANGLE | 90° |
| CRI | >80 |
| PF | ≥0.9 |
| FINISH | Black |
| MATERIALS | Die-cast Aluminum |
| LIFESPAN | 7 |
| DESCRIPTION | SARIN LED UFO High Bay lights are commonly used in the lighting of workshops, factories, warehouses, large retail spaces, gas stations, and gymnasiums. These fixtures are suitable for a variety of applications, and will provide significant energy savings. Round high bay LED lights provide a circular light beam angle of 90°. This High Bay provides uniform light distribution and features a diecast aluminum construction, making the lights extremely durable. This LED Round High Bay is 0 10V dimming and features a motion sensor base allowing for further customization. |
SPECIFICATIONS
UFO High Bay – HB18B – Specifications
INSTRUCTIONS
UFO High Bay – HB18B – Installation
IES FILES
UFO High Bay – HB18B, Low Wattage – IES File
UFO High Bay – HB18B, Hight Wattage – IES File
PHOTOMETRICS
UFO High Bay – HB18B, Low Wattage – Photometrics
UFO High Bay – HB18B, Hight Wattage – Photometrics
COMMON STOCK MODELS
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11345 | SES-HB18B-CCT-LW | UFO High Bay, HB18B Low Watt – CCT Tunable, Wattage Adjustable |
| 11346 | SES-HB18B-CCT-HW | UFO High Bay, HB18B High Watt – CCT Tunable, Wattage Adjustable |
| 11374 | SES-HB18B-CCT-LW-WH | UFO High Bay, HB18B Low Watt – CCT Tunable, Wattage Adjustable, White |
OPTIONAL ACCESSORIES
| ITEM CODE | MODEL NUMBER | PRODUCT DETAILS |
| 11115-A | HB01DMS | High Bay Sensor |
| 11123 | SES-HB11-EM | High Bay Emergency Backup 30W |
| 11124 | SES-HB11-150W-COVER | High Bay 150W Cover |
| 11125 | SES-HB11-240W-COVER | High Bay 240W Cover |
| 11345-A | SES-HB11&HB18B-150W-YK | High Bay HB18B – 150W Yoke |
| 11345-B | SES-HB11&HB18B-240W-YK | High Bay HB18B – 240W Yoke |
| 11345-C | SES-HB11&HB18B-REMOTE | High Bay HB18B – Sensor Remote |
| 11345-D | SES-HB11&HB18B-150W-WIRE-GUARD | High Bay HB18B – 150W Wire Guard |
| 11345-E | SES-HB11&HB18B-240W-WIRE-GUARD | High Bay HB18B – 240W Wire Guard |
